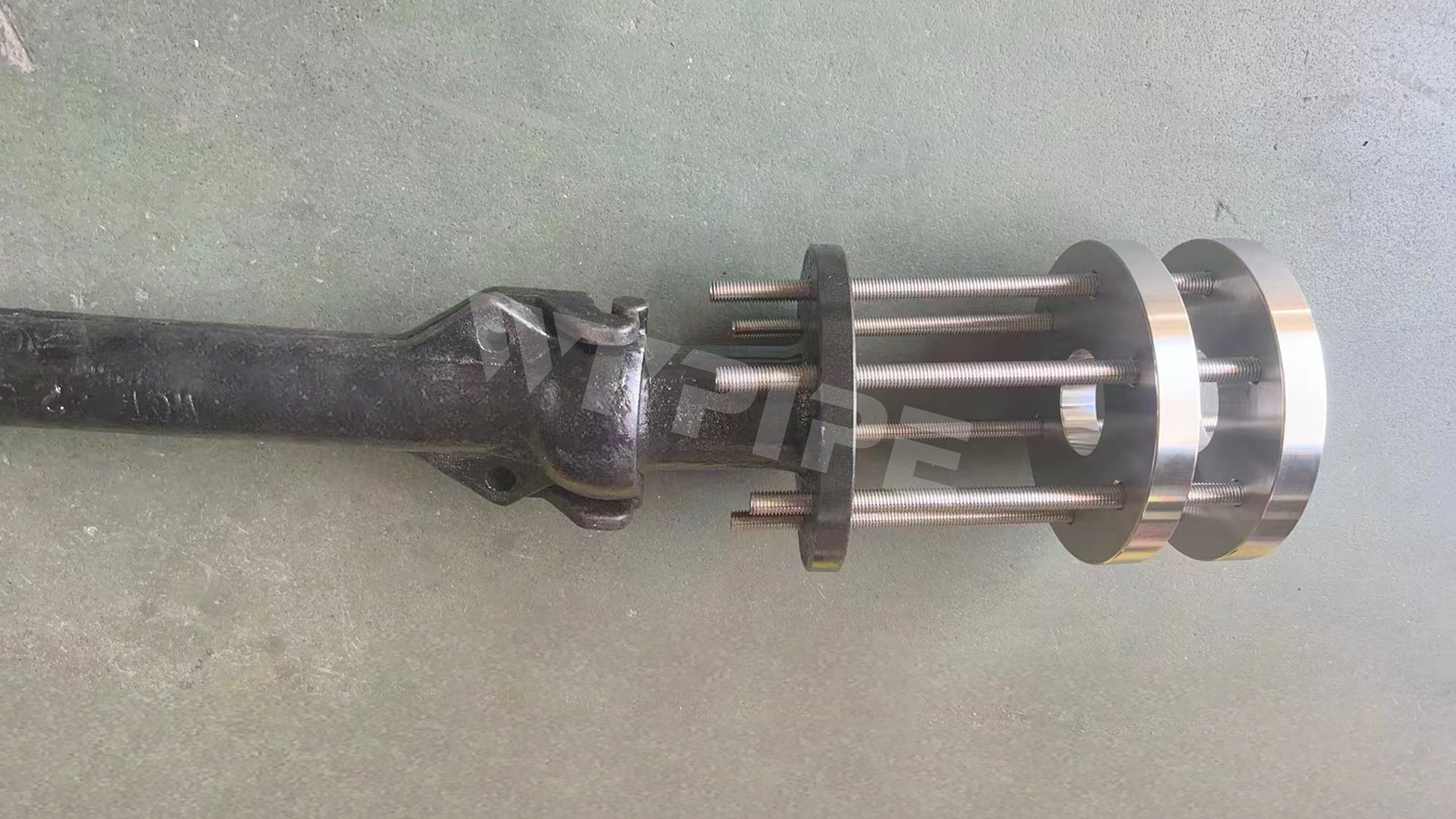

Case Study: Articulated Pipe (WT042×9) + Flange-type transition joint designed for beach manhole connection (North America)
Application: Nearshore Cable Protection & Shore-end installations

Overview
This was a small but highly representative order for Nearshore Cable Protection. It shows how an articulated pipe can be matched with a flange and back plate (or anchor plate) to connect to beach manholes – a typical Shore-end installation scenario. You may find a similar need in your own project.

Challenge
We received an inquiry with cable dimensions and immediately recommended the appropriate articulated pipe. Later, the client requested matching flanges and a back plate to connect the pipe, but provided no specific drawings or parameters.

Our Solution

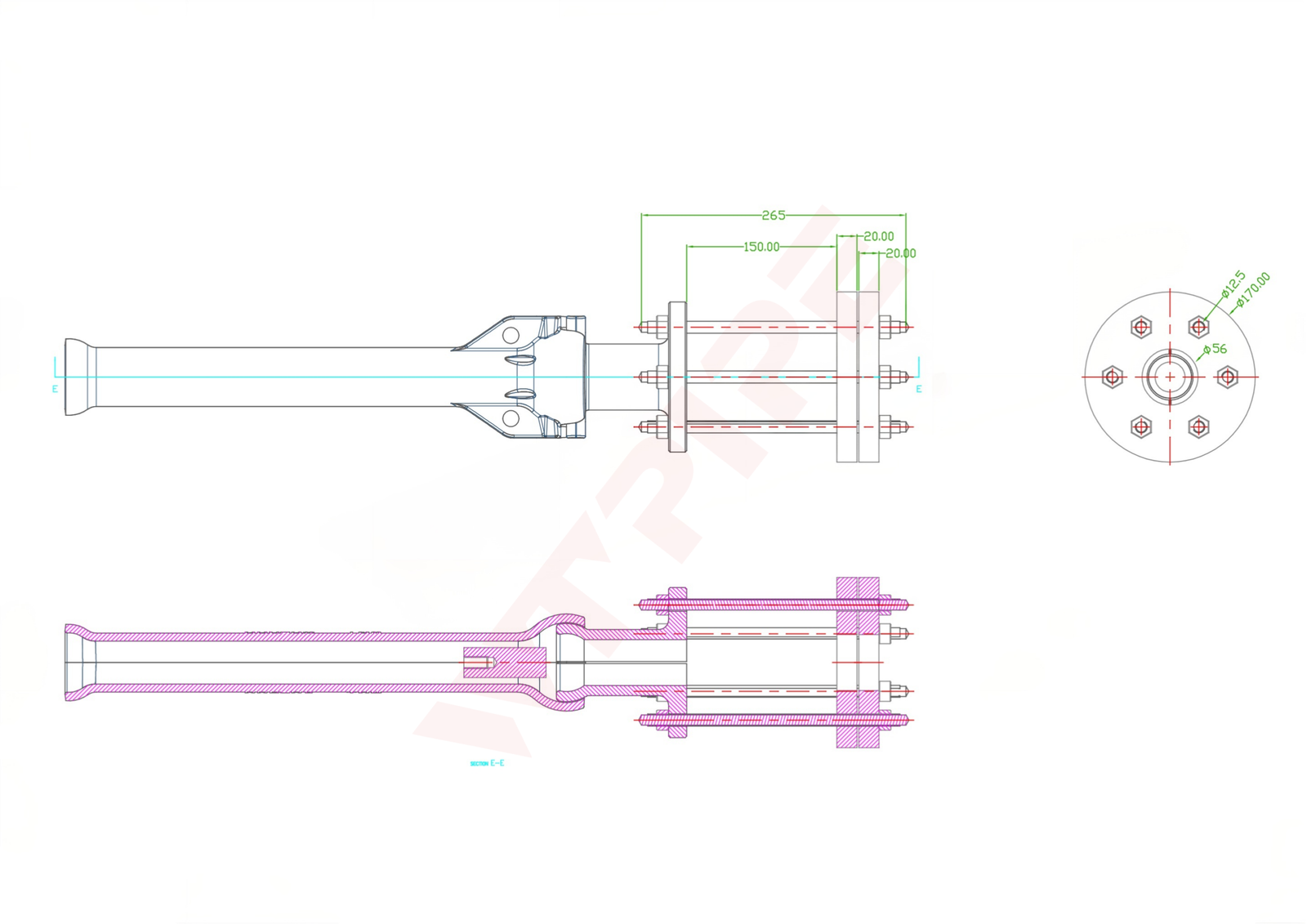

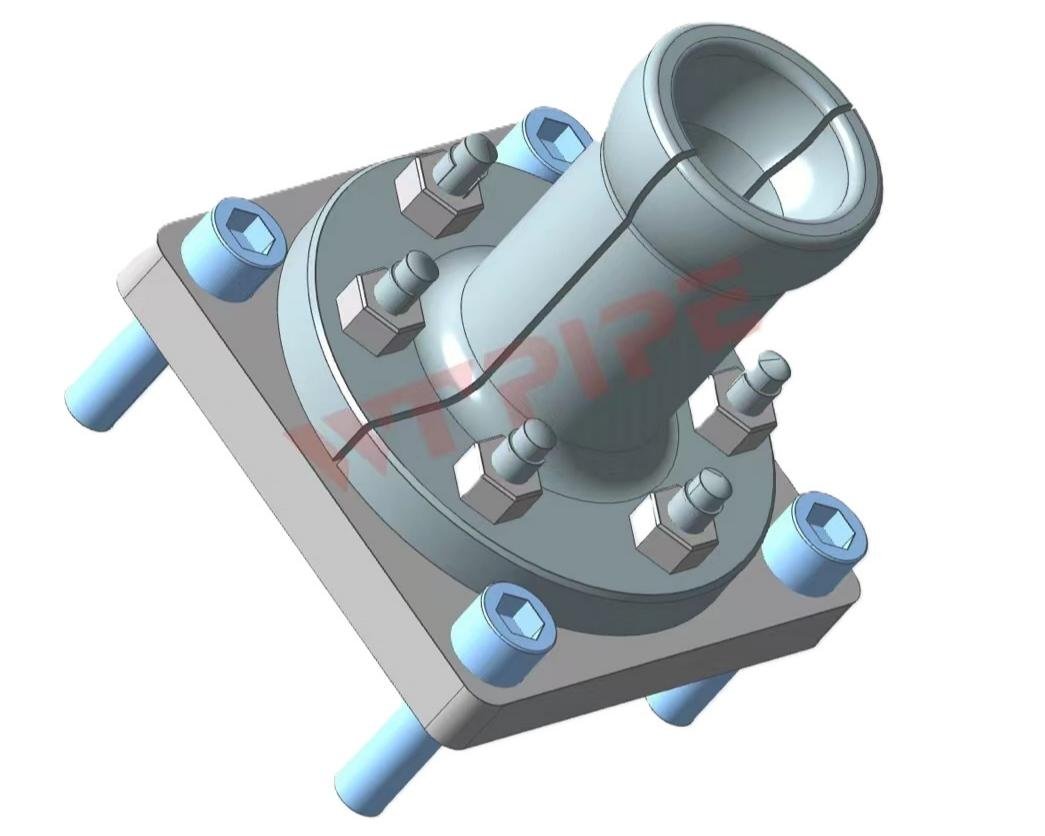

Our technicians developed a complete design plan and drawings based on the articulated pipe and cable size. After several rounds of confirmation and communication, the client confirmed the order and paid the advance.

Production & Quality Control
The flanges and back plate were required in small quantities and had to be customized. Despite the small order size, we followed every procedure rigorously to ensure product quality met requirements. After production, our QC team conducted physical installation and testing, and recorded the process with photos and videos.

Result
The client approved the results, paid the balance, and we arranged smooth shipment.

Our Commitment
We maintain communication and provide suggestions based on each project’s needs. Using drawings, photos, and case histories, we address client concerns. Our close collaboration ensures smooth execution of every order – regardless of size – for Nearshore Cable Protection and Shore-end installations worldwide.

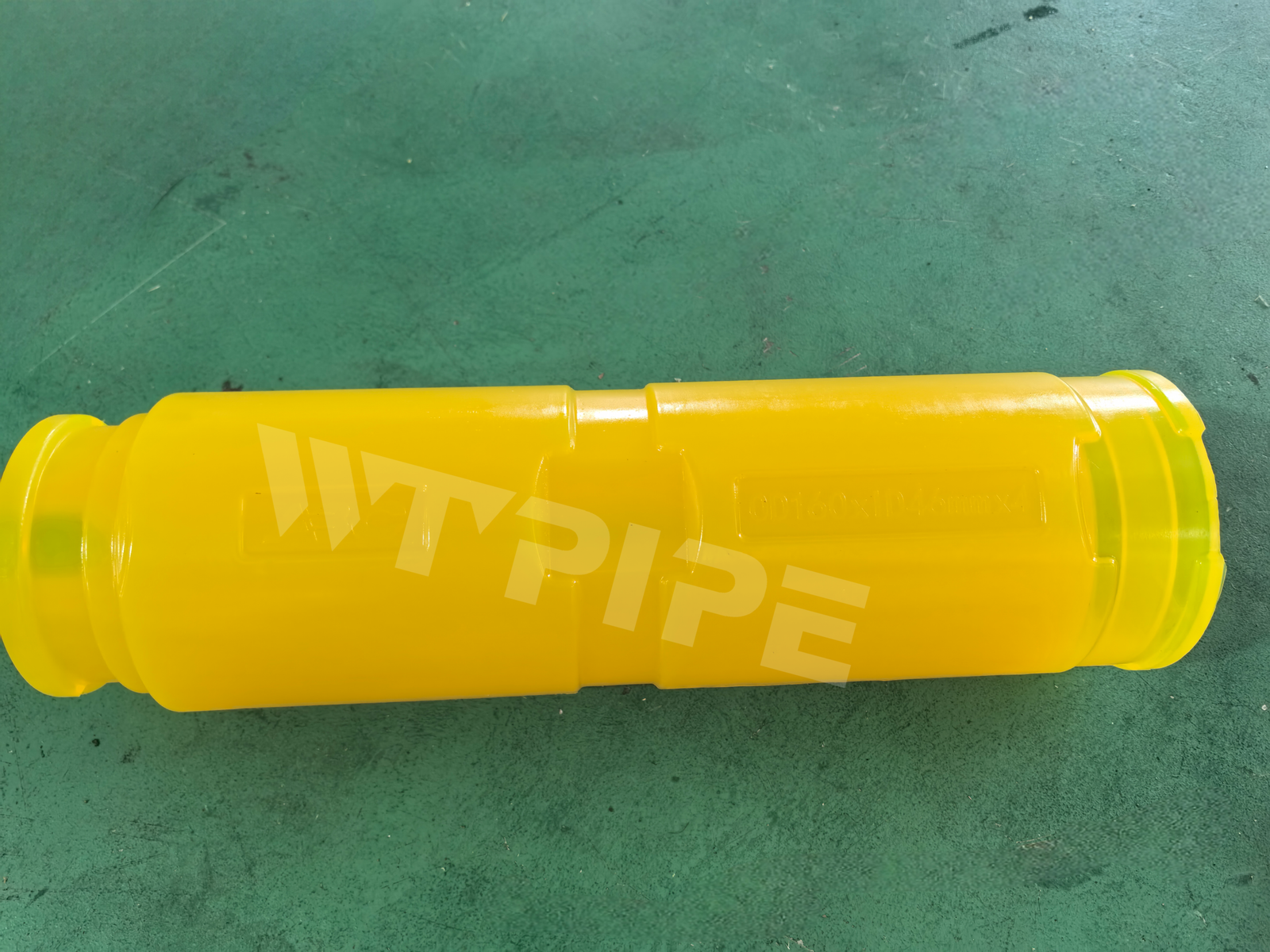

Case Study: Polyurethane Protection Pipe + Transition Joint (4-hole design)
Providing Design Cable Protection Cover with Impact And Abrasion Protection

Overview

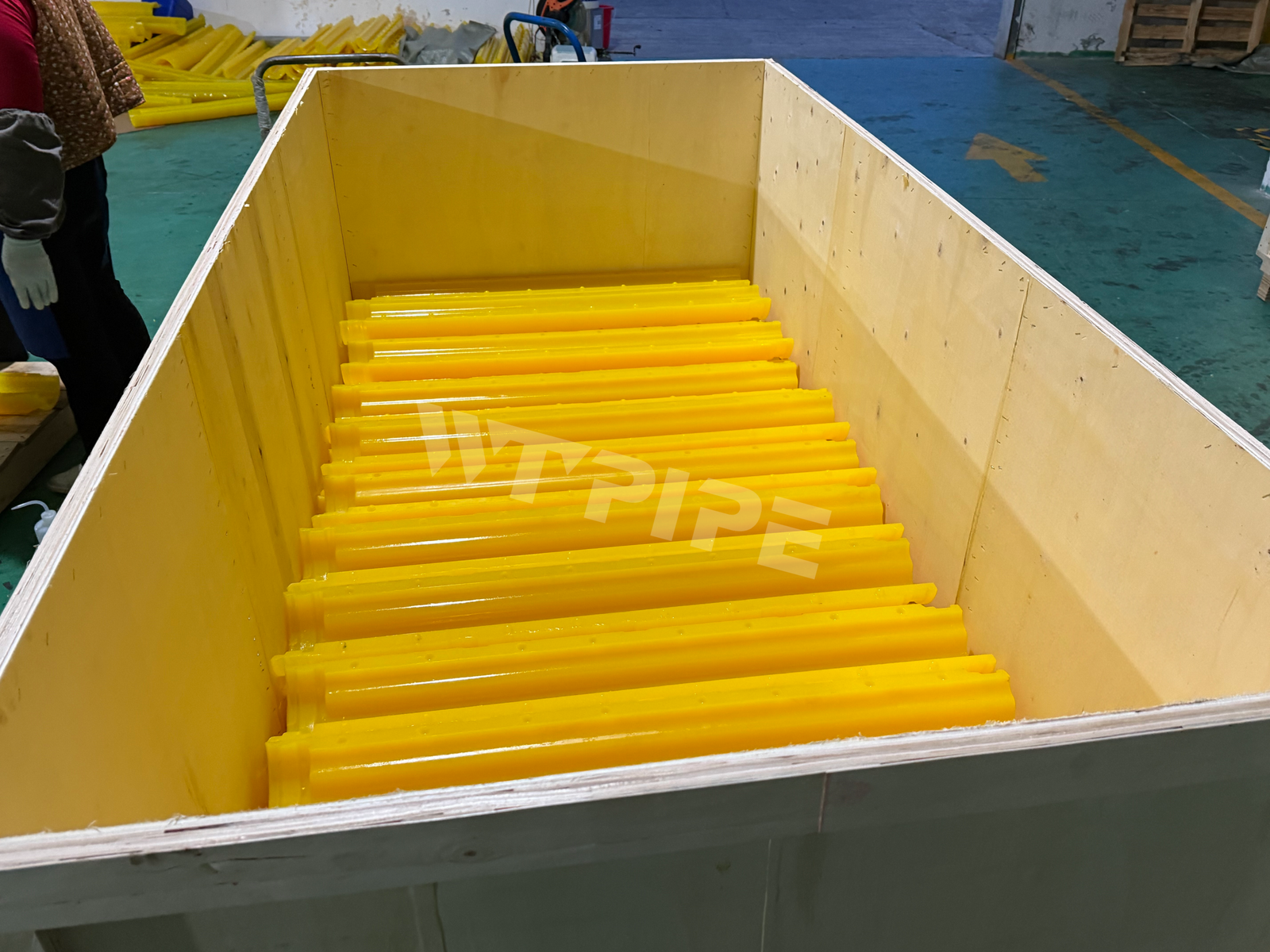

The client required polyurethane protection pipes and transition joints for full cable protection – both are our specialty. Their technical team raised clear requirements on material properties and design from the start, seeking a Design Cable Protection Cover that ensures Impact And Abrasion Protection for their cables.
Challenge
The client had strict technical expectations, wanting the protection solution to perfectly match the cable application environment.
Our Solution
Multiple technical communications addressed every detail. The client recognized our professionalism and decided to visit our factory. A five-person team toured our production lines, testing center, and departments. We then finalized the design and signed the contract.
Production & Quality Control

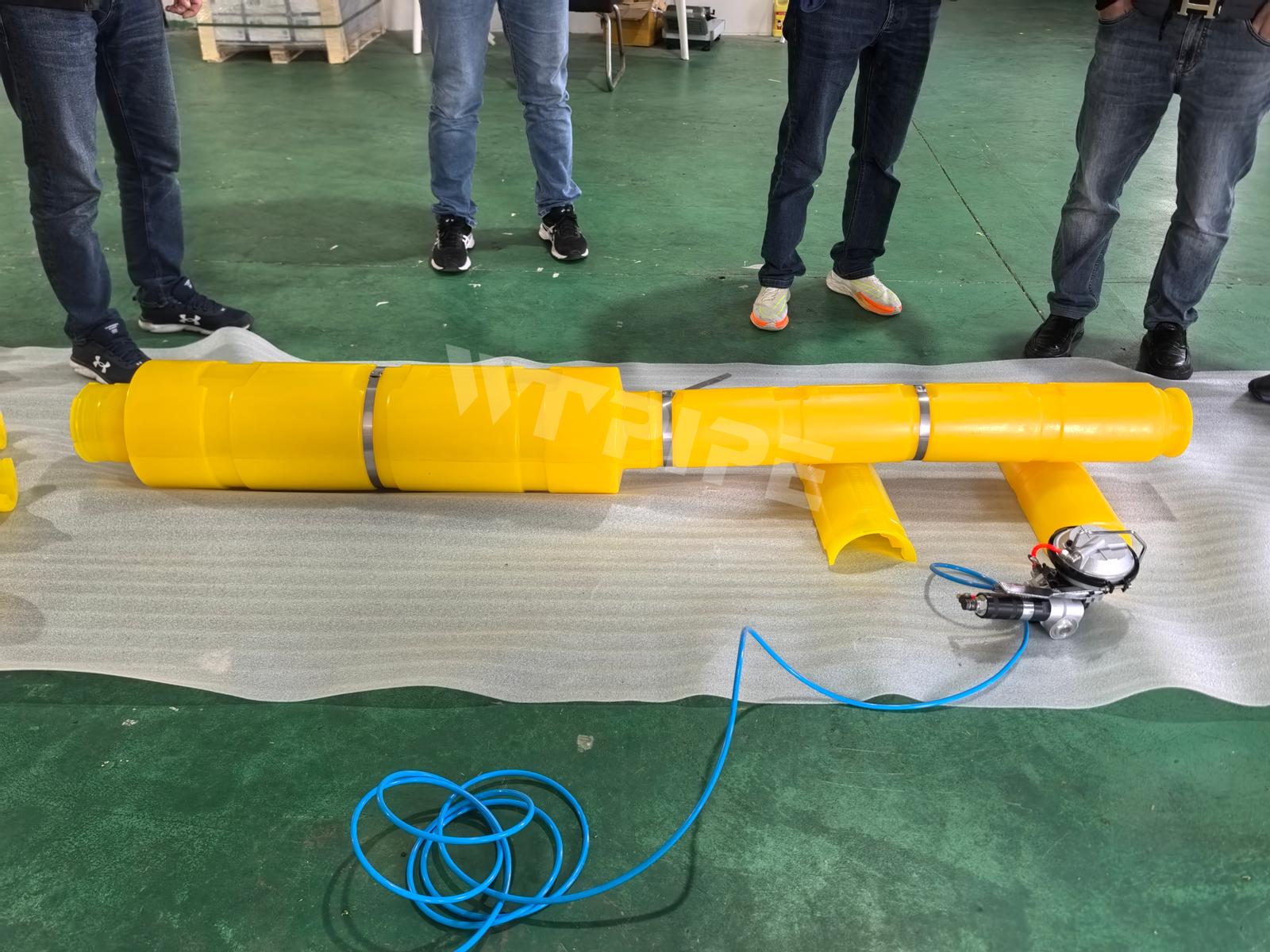

The order proceeded with strict quality control at every step. After production, the client visited again to inspect and perform onsite installation tests using their cable samples.
Result
The delivered products fully met expectations, and the client left highly satisfied. We appreciate the indepth collaboration. The project’s success relied on close cooperation with the client and our internal team. We always respond to trust with professionalism.

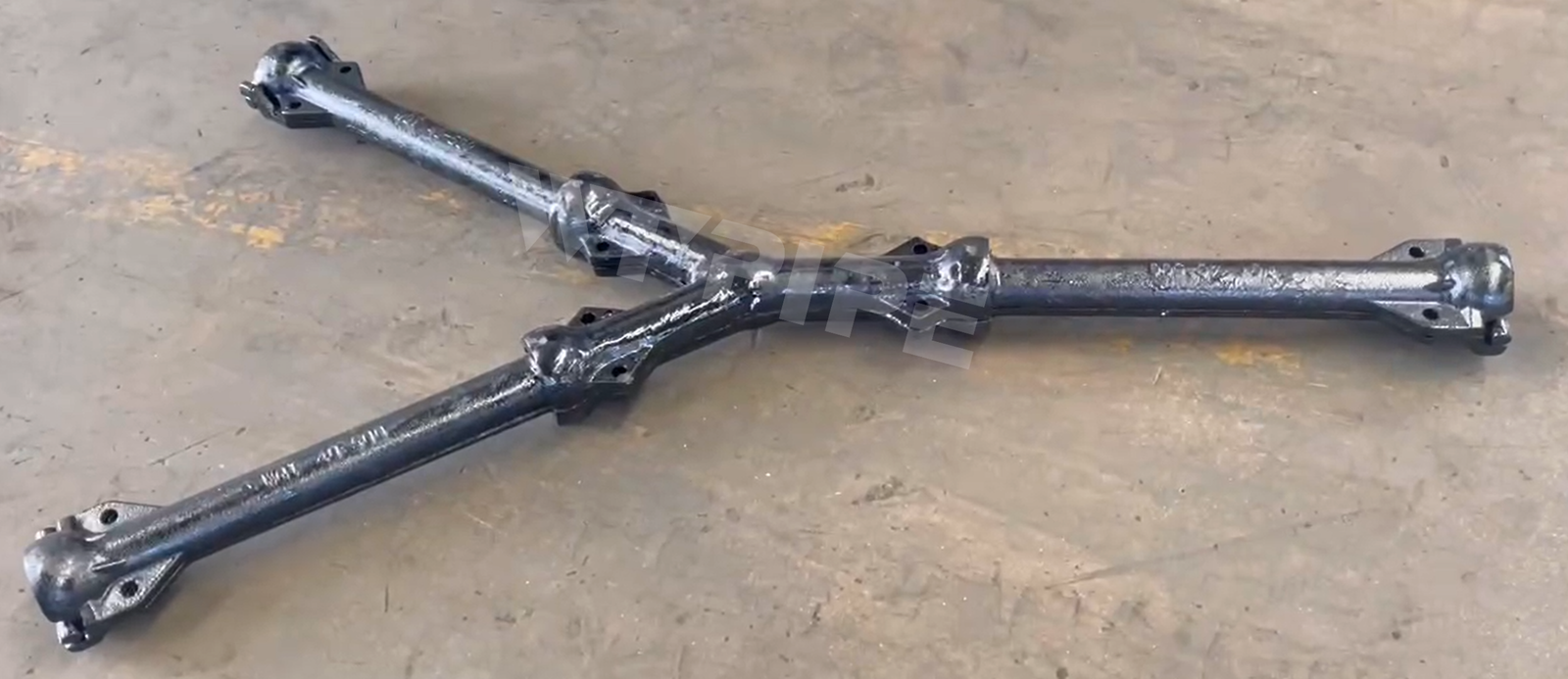

Case Study: Articulated Pipe ID40×9 mm + Y-Connector （Middle East）
Providing a complete Cable Protection Solution for offshore needs

Overview
A Middle East client approached us. Instead of rushing to quote, we engaged actively with their purchasing and project managers, confirming every detail – product drawings, quality requirements, test specifications – before presenting our tailored Cable Protection Solution. The client accepted the price immediately and promised fast order confirmation.

Challenge
The main challenge was the request for a Custom Articulated Pipe Y-connector with no clear drawings or parameters. Additionally, much communication took place around Chinese New Year – a time we could have been offline, but we stayed responsive.

Our Solution

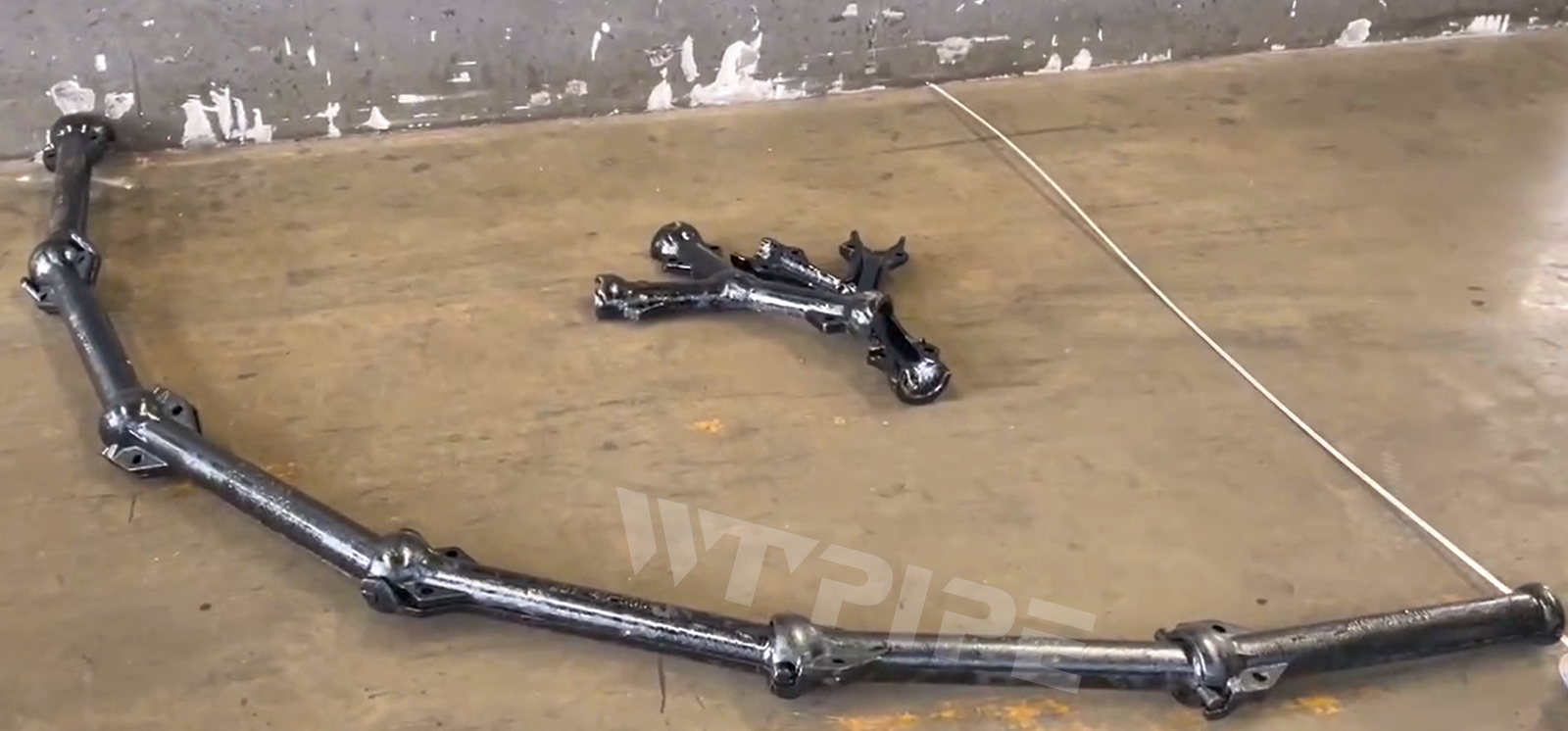

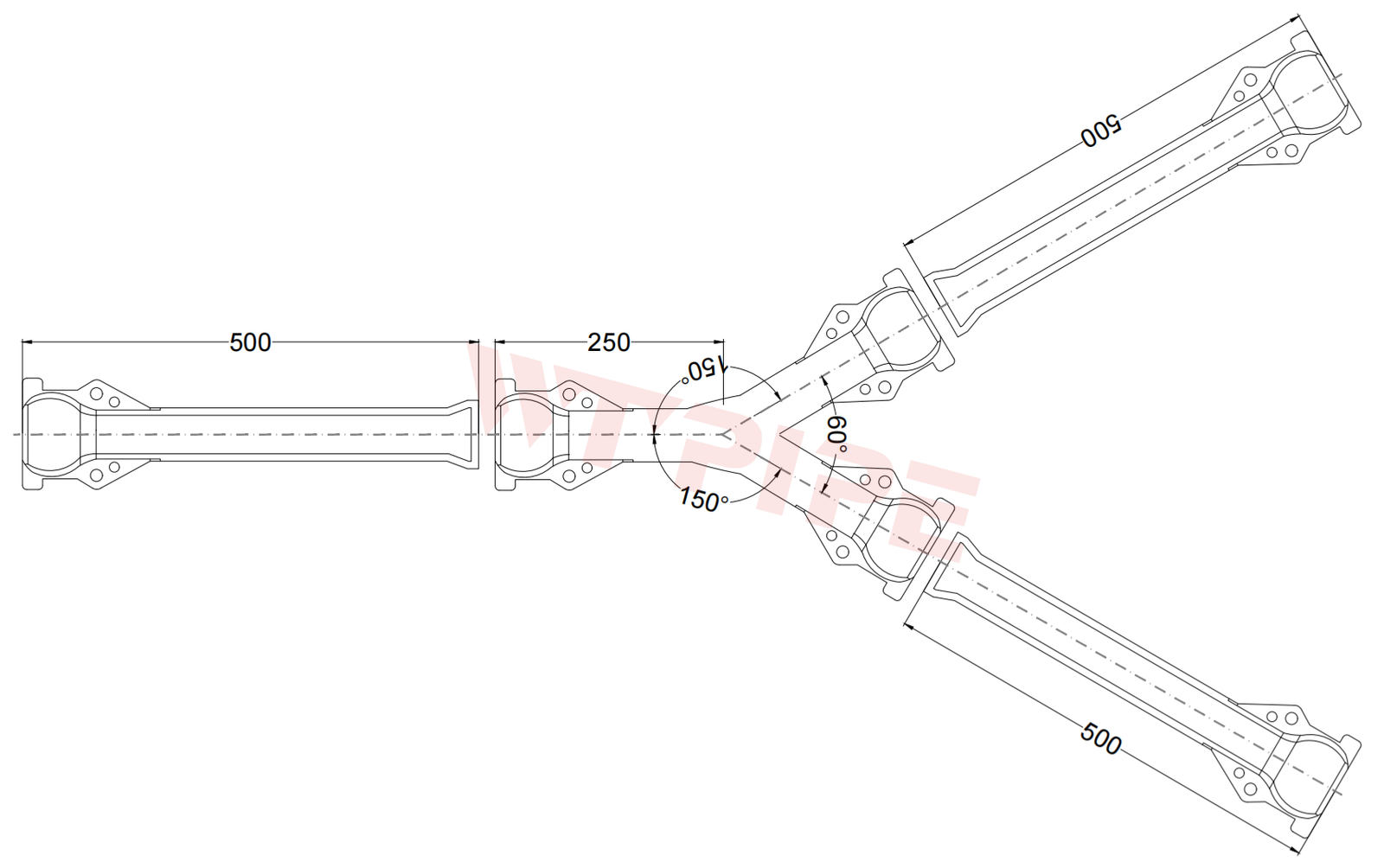

We maintained efficient communication even during the holiday. Our technician designed the Y‑connector based on cable outer diameter and the matching articulated pipe. The design was quickly approved. On the first day of Chinese New Year 2022, we received order confirmation and payment – a welcome surprise during the pandemic.

Production & Quality Control

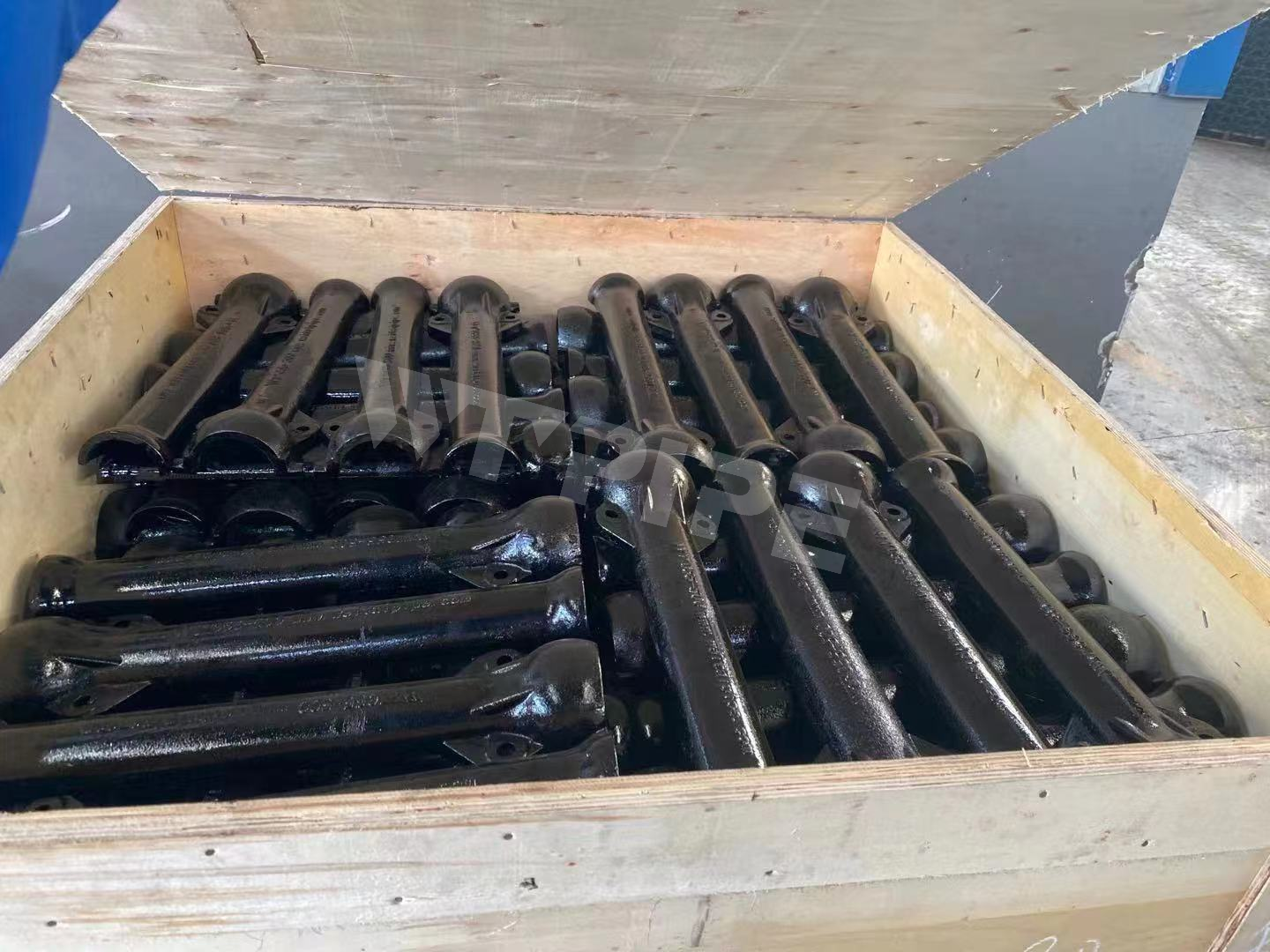

After the holiday, we moved into full production: mold opening, raw material ordering, manufacturing, testing, and packaging – all executed in an orderly manner. Despite the small quantity and custom nature of the Y‑connector, we followed every quality procedure strictly.

Result
We completed the order within the client’s required timeframe. The goods were shipped to their designated agent’s warehouse and delivered on schedule. The client was fully satisfied with both quality and delivery.

Our Commitment
Our professional, efficient team works anytime, anywhere to provide high-quality service – contributing to Offshore Cable Protection for global wind power and submarine cables. Whether large or small, standard or custom, we handle each with the same rigor and dedication.

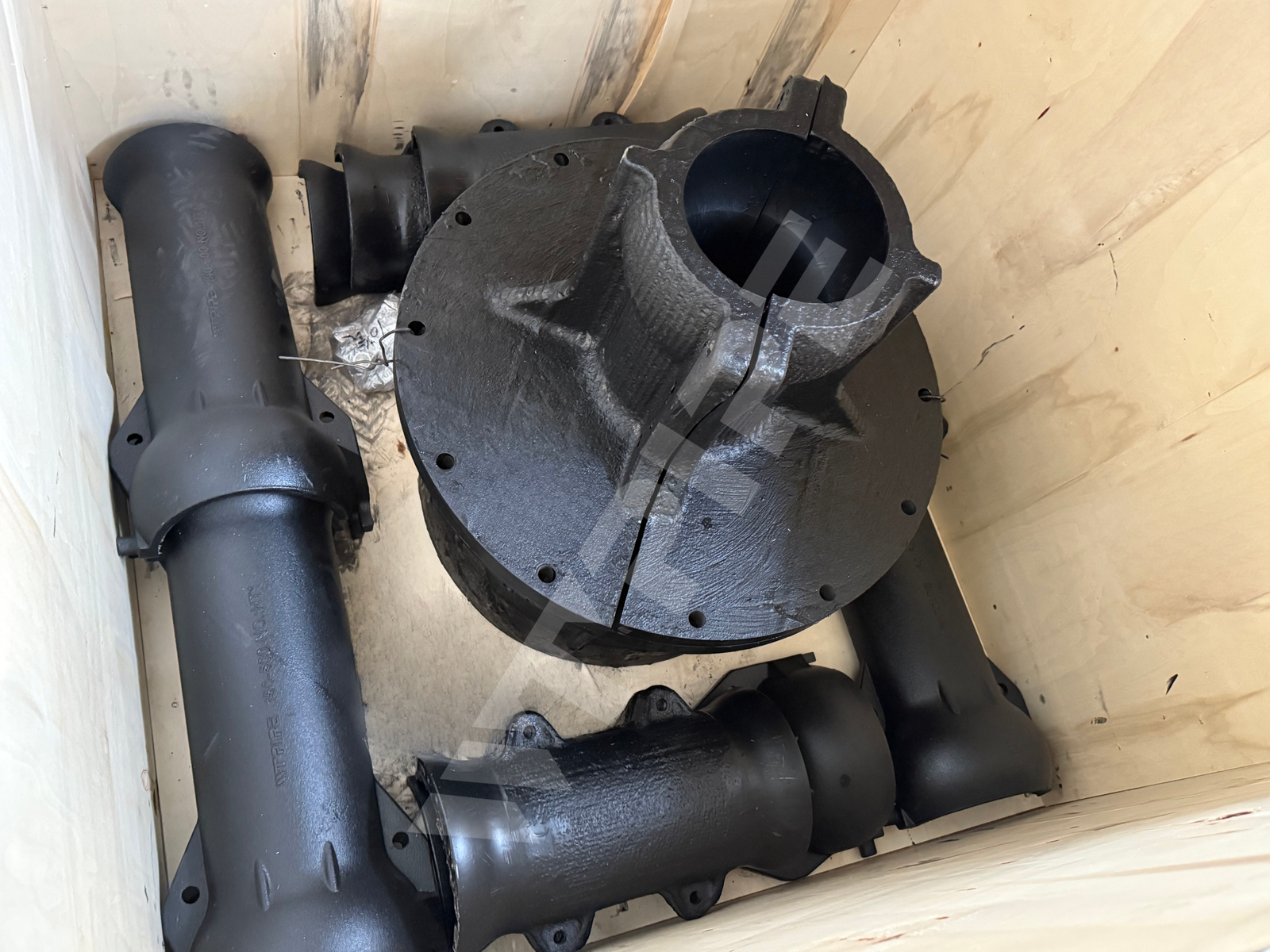

Case Study: Ductile Iron Articulated Pipe & Connection Joints (ID150)
Middle East Tender Project Providing a complete submarine cable protection solution from an experienced Articulated Pipe manufacturer

Overview
The client sought a submarine cable protection solution via open tender. We analyzed the tender specifications, refined the design plan, and submitted a complete technical response including design proposals, test reports, and case studies.
Challenge
Strict technical and performance requirements, plus in-house pre-assembly and testing to verify compatibility. Delivery in four batches imposed tight schedules on production, quality control, and logistics.
Our Solution

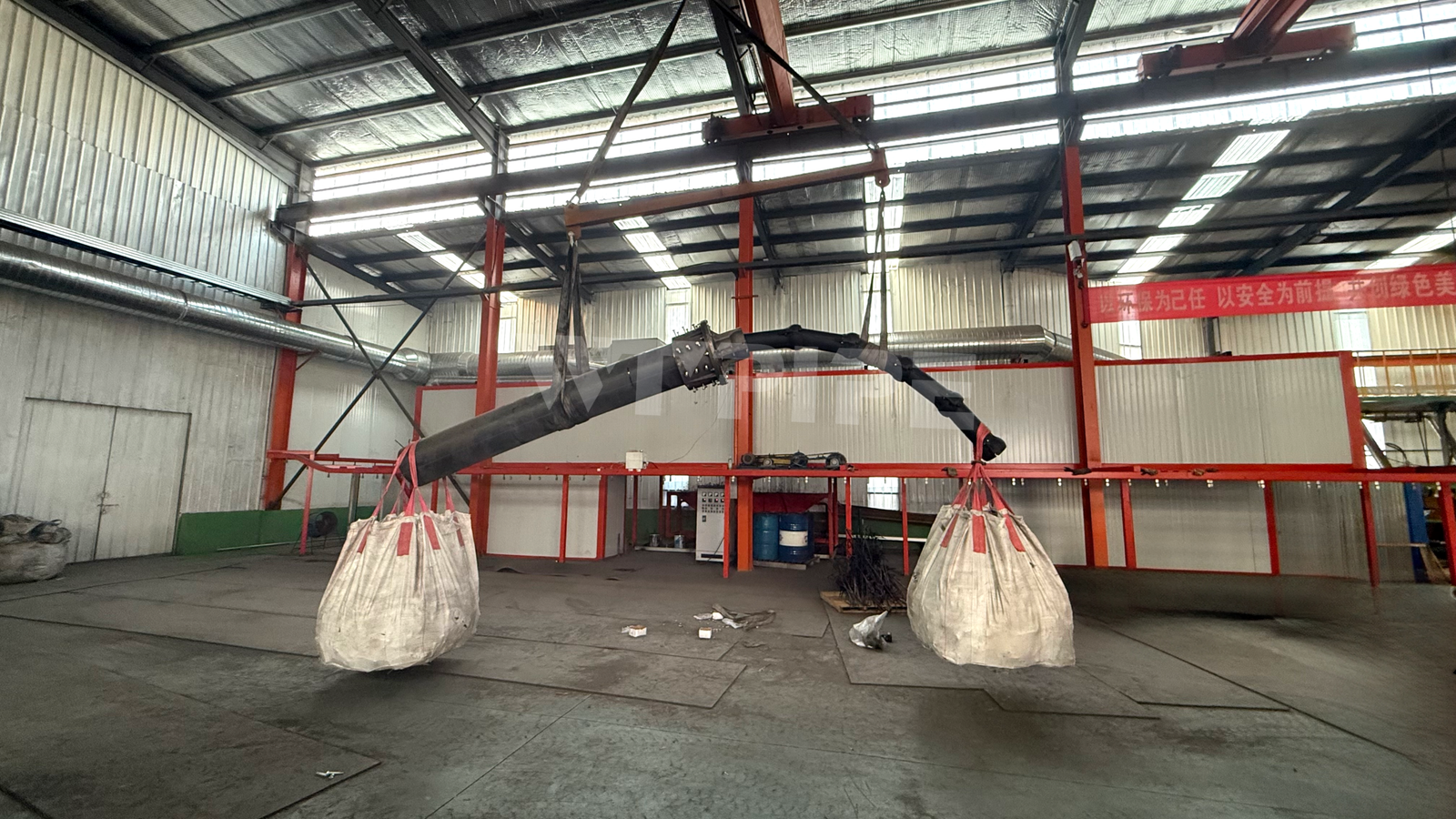

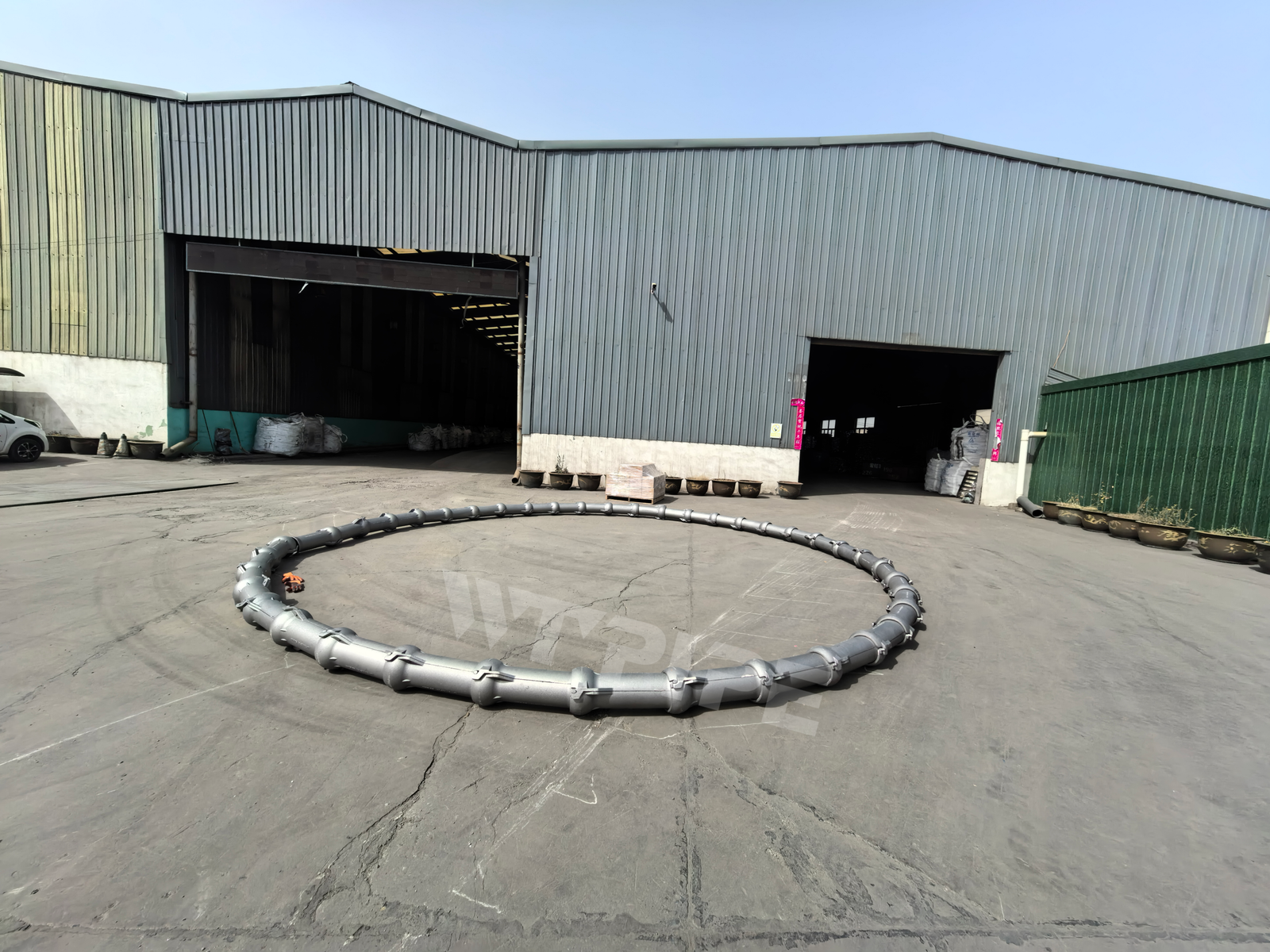

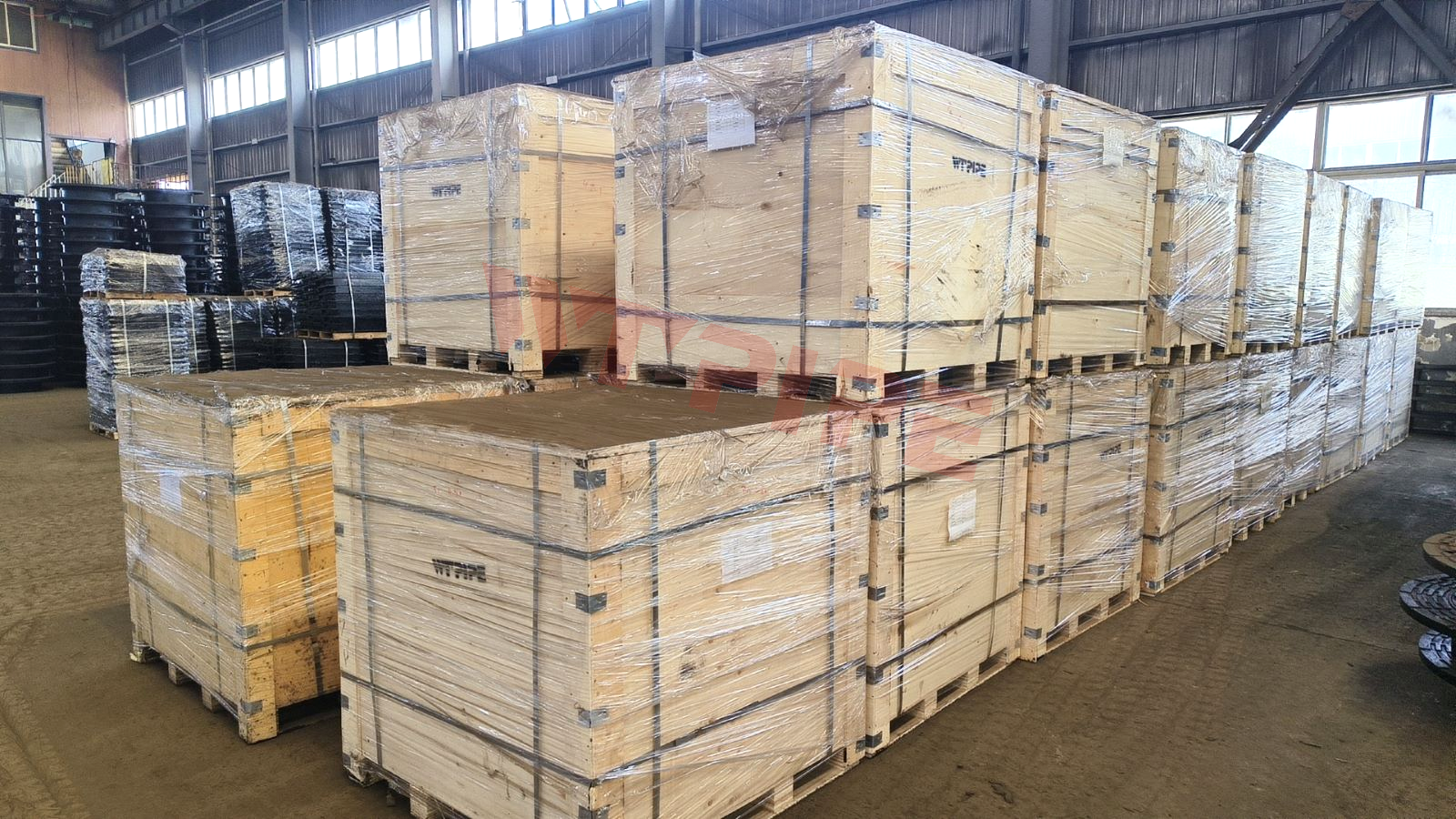

After winning the tender, we adhered strictly to the project schedule: mold development → raw material procurement → production → testing – all under control. Each batch was pre-assembled, installed, and load-tested in our factory, with photos and videos recorded. After client approval, we shipped four batches on schedule, each with test records.
Result

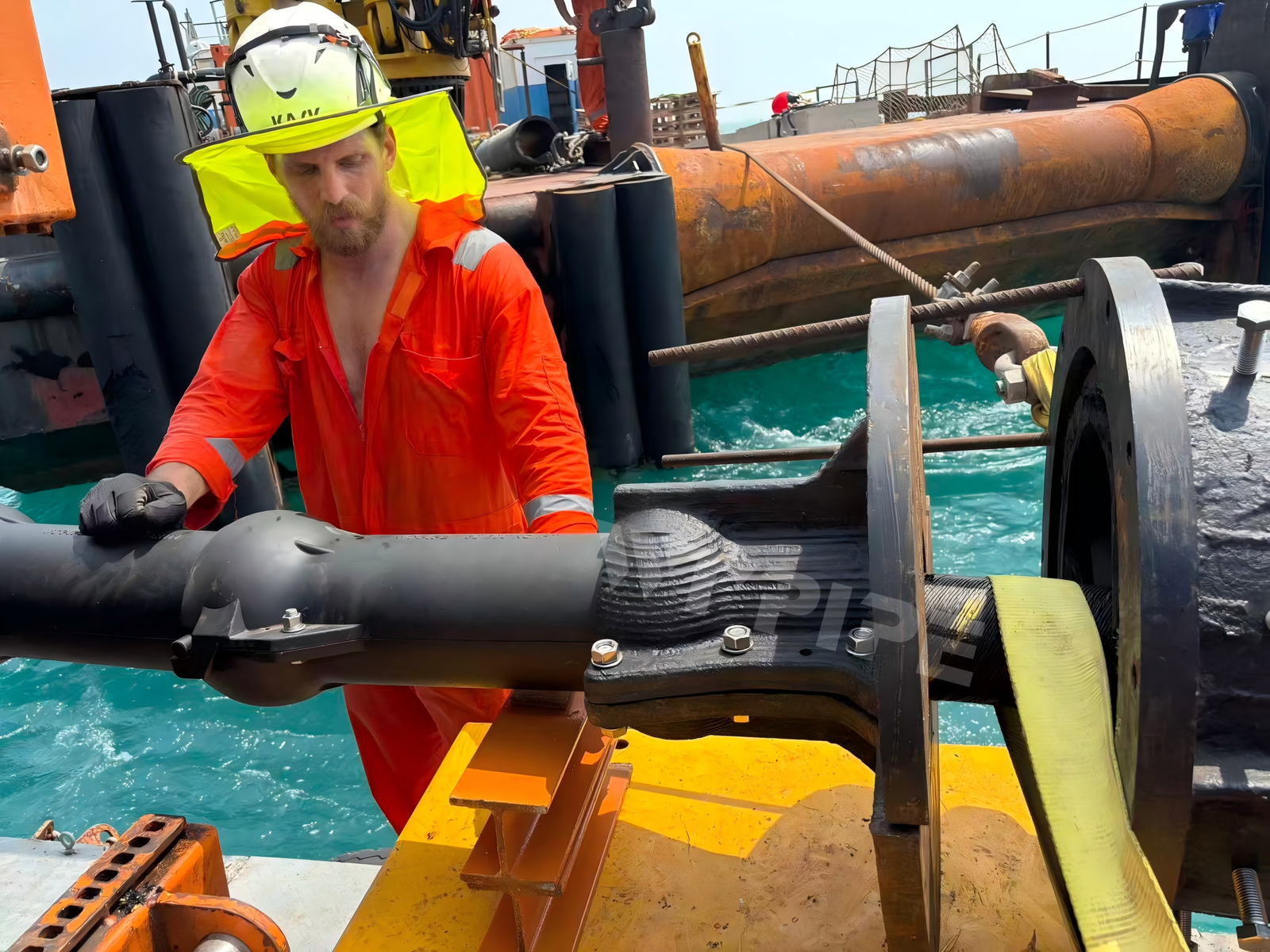

All goods arrived on time, installation was smooth, and performance met requirements. The client highly recognized our professionalism and product quality. As a dedicated Articulated Pipe manufacturer, we ensure reliable Undersea Cable Protection for every project – from tender to delivery. Every detail matters

Our Project Lists

NO	CUSTOMER NAME	PRODUCTS	SPECIFICATIONS	QUANTITY(M)
1	PUTIAN**	DUCTILE IRON ARTICULATED PIPE	WQT150*12	2000
2	STATE **	DUCTILE IRON ARTICULATED PIPE	WQT50*8	1200
3	CHINA**	POLYURETHANE CABLE PROTECTOR	WTPE102*30	1500
4	SHANGHAI**	DUCTILE IRON ARTICULATED PIPE	WQT50*8	2500
5	ZHEJIANG **	SPLIT CONDUIT BUCKLE TYPE CABLE PROTECTIVE PIPE	WTFB180*8	400
6	JIANGSU **	POLYURETHANE CABLE PROTECTOR	WTFRP200*8	1300
7	QINGDAO **	DUCTILE IRON ARTICULATED PIPE	WQT150*12	1200
8	JIANGSU **	DUCTILE IRON ARTICULATED PIPE	WQT100*10	1000
9	JIANGSU **	CONCRETE MATTRESSES	6*3m	210

NO	CUSTOMER NAME	PRODUCTS		SPECIFICATIONS	QUANTITY(M)
1	SAUDI ARABIA-IC**		ARTICULATED PIPE	WQT 42-9	5000
2	Congo-MA**		ARTICULATED PIPE	WQT50-9	2000
3	Cambodia-EM**		DUCTILE IRON PROTECTIVE PIPE	WQT170-10	3000
4	Vietnam-OE**		DUCTILE IRON PROTECTIVE PIPE	WQT200-10	1000
5	Indonesia-PT. COM*		POLYURETHANE CABLE PROTECTOR	WTPE30*23	2000
6	Indonesia-PT. COM*		DUCTILE IRON PROTECTIVE PIPE	WQT 42*9	1250
7	Peru-ST**		ARTICULATED PIPE	WQT 45-9	2250
8	RUSSIA-B**		POLYURETHANE CABLE PROTECT PIPE	WTPE41*31	300
9	Croatia-T**		ARTICULATED PIPE	QWT260*10	2000
10	MALDIVES-S**		POLYURETHANE PROTECTIVE PIPE	WTPE90* 20	700
11	SAUDI ARABIA-NE**		ARTICULATED PIPE	WT055*9	2160
